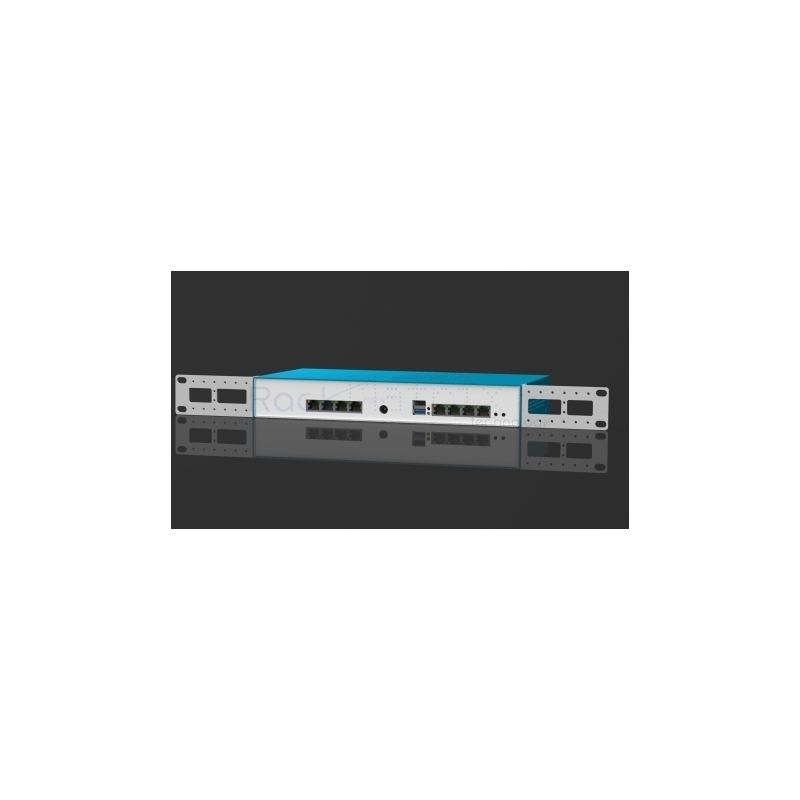

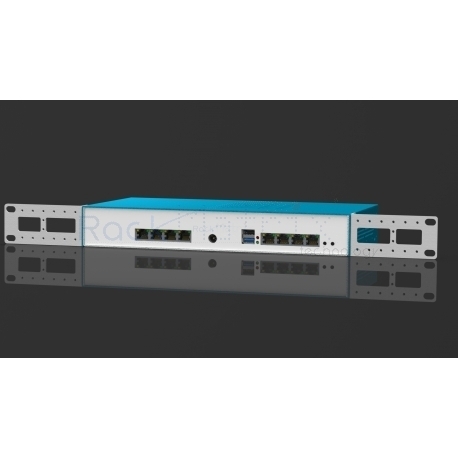

RackMatrix® S2 ready-to-use with Noah2 + BL-GEQ211R-PCIE (7 Gigabit ports)
* non-contractual pictures

Ready to use RackMatrix® S2, 7 ports GbE Intel E3845, 4 cores, 1.91 GHz

Ready tp use RackMatrix® S2, 7 ports GbE Intel E3845, 4 cores, 1.91 GHz

More details

RMT-CASE-S2-BDL0005#B

New product

417,20 € tax excl.

(Public price)
5 - 9 413,03 €
10 + 408,86 €

More info

Ready-to-use RackMatrix® solution with a Noah5 E3845, 1.91 GHz quad core board, 7 GbE ports in a S2 high-quality, modular, robust and rack-mountable 1U case.

The use cases are endless: router, firewall, virtualization appliance, multimedia solution, VPN gateway, WLAN acces point ect...


Description :

CPUIntel E3845 Quad core, 1.91 GHz
Memory4/8 GB DDR3-1333 DRAM
I/O7 Gigabit ports Intel

External

Connetors

RJ45 Serial port

1 x USB 2.0 - 1 X USB 3.0

StoragemSATA 32/64/128GB

Other

Options

Possible *

1 SFP port
UPS Battery
1 or 2 RJ45 ports additional

Power supplyExternal 12 V Power supply
Warranty1 year
Dimension for 1U162*298*44 mm

Enclosure features :

Ours enclosure are made of high quality aluminum, which ensures stability and durability. In addition, thanks to the Patented RackMatrix® Technology, ours enclosures are fully modular, self-cooling and adaptable for all possible applications.



Printing options :

  • Product: The printout will correspond to the chosen software. If your choice is "no software" we will proceed with the generic print.
  • Generic print: For products without software
  • No printing.
  • Custom printing: If you choose this option on a new product or for the first time, you will also need to purchase custom printing mastering for each panel to be done. For more details or to receive the templates, please contact us. If your master is already created, do not forget to remind us of the reference of it.

* Other Possible Options : Contact us on +33 1 84 18 10 18 or sales@rack-matrix.com for more information or customised products.
