> >>>Ready-to-use system with Intel® Core™ i7, 6 ports GbE, optional 2 ports SFP or SFP+
New Ready-to-use RackMatrix® M1 system with H67Sl Intel® Core™ i7 card
* non-contractual pictures

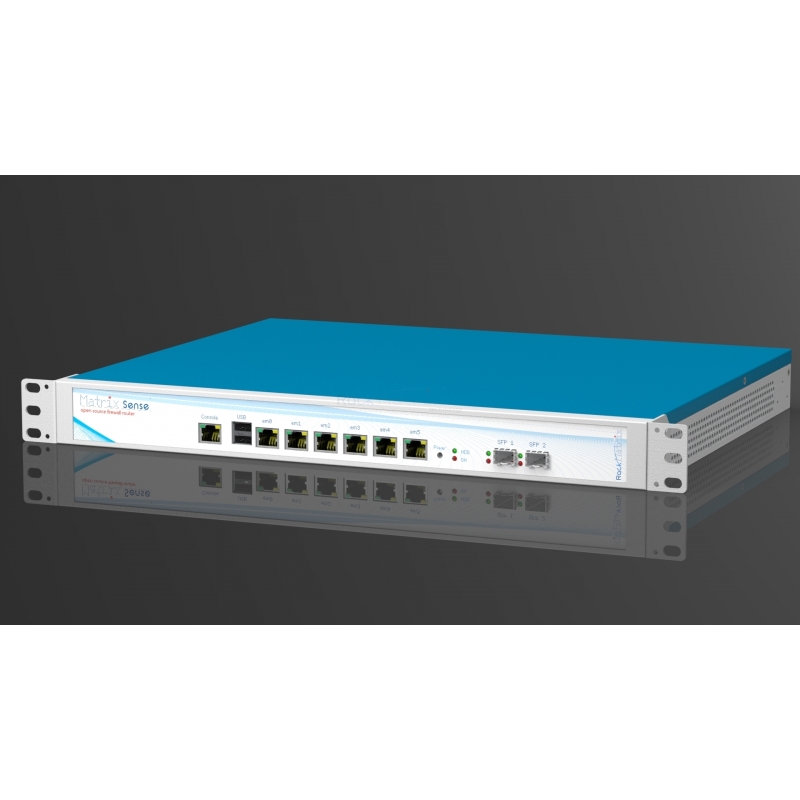

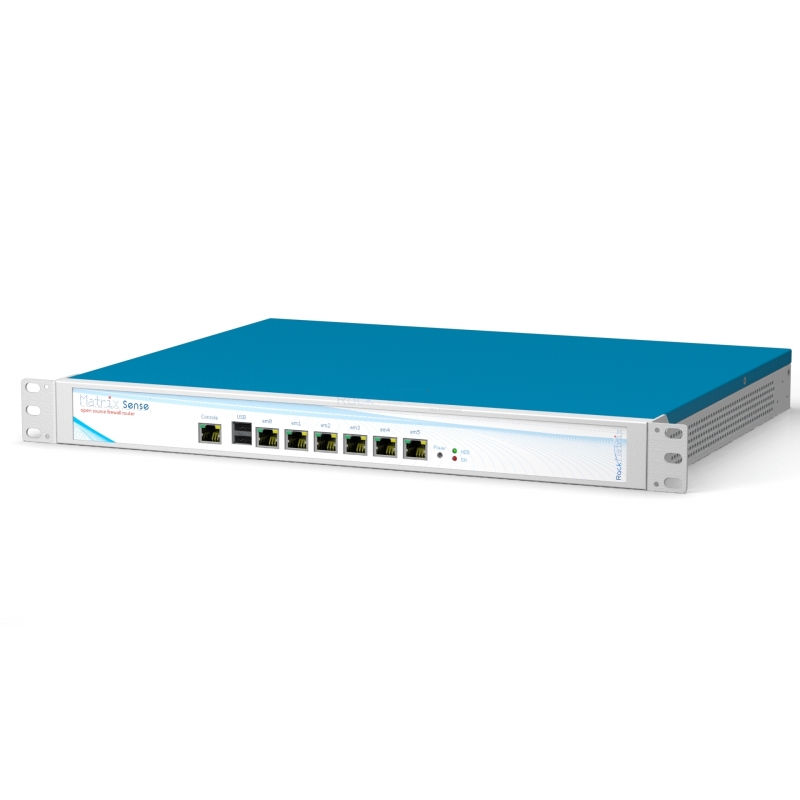

Ready-to-use system with Intel® Core™ i7, 6 ports GbE, optional 2 ports SFP or SFP+

RackMatrix® M1 system ready with H67SL Intel® Core™ i7 board, quad-core, 6 GbE ports

More details

RMT-CASE-M1-BDL0023#E

New product

466,44 € tax excl.

(Public price)
5 - 9 461,78 €
10 + 457,11 €

More info

Ready-to-use RackMatrix® M1 solution with a quad-core Intel i7 processor in a 19" high-quality, modular, rugged and rack-mountable 1U rack.

The uses cases are endless: router, firewall, multimedia solution, VPN gateway, virtualization appliance, WLAN access point, ect...

Details :

MotherboardH67SL
CPUIntel® Core™ i7, 4 core, 8 threads
Memory4/8/16GB DDR3-1333 DRAM
StoragemSATA 32/64/128GB

Rear

I/O

1x RJ45 serial port (CISCO)

6 Intel Giga ports

2x USB 2.0

Optional : 2 x SFP ports or 2 x SFP+ ports

Power supplySwitching power supply 25.2W, 12V DC, 2.1A, with LED switch and fuse
Warranty1 year
Dimension for 1U343*430*19 - 19"

Enclosure features :

Ours enclosure are made of high quality aluminum, which ensures stability and durability. In addition, thanks to the Patented RackMatrix® Technology, ours enclosures are fully modular, self-cooling and adaptable for all possible applications.



Printing options :

  • Product: The printout will correspond to the chosen software. If your choice is "no software" we will proceed with the generic print.
  • Generic print: For products without software
  • No printing.
  • Custom printing: If you choose this option on a new product or for the first time, you will also need to purchase custom printing mastering for each panel to be done. For more details or to receive the templates, please contact us. If your master is already created, do not forget to remind us of the reference of it.
