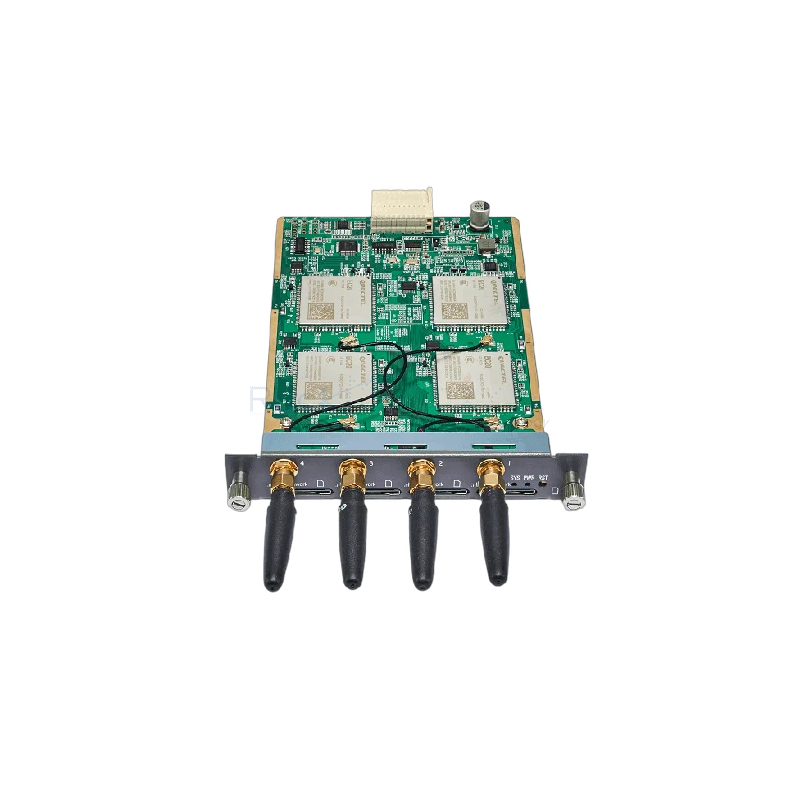

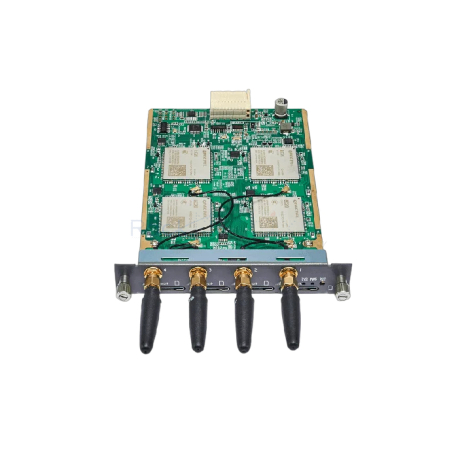

4G/LTE module - 4 channels - EMEA (Europe, Middle-East & Africa) /Korea/Thailand

Key points of the product

EMEA (Europe, Middle-East & Africa) /Korea/Thailand 4G/LTE Module 4-channel for VS-GW1600 V2

• affordable price for higher quality
• hot Swap design for each SIM card and modules
• Compatible with Asterisk, Elastix, 3CX, FreeSWITCH SIP server
• Available in EOM
• 2 years warranty

Please note: This is a special-order item. Delivery time is 2 to 3 weeks. Orders cannot be cancelled or exchanged.

Overview

The VS-GW1200-XG is a modular design GSM gateway 4 x 4G/LTE channels, developed for interconnecting a wide range of codecs and signaling protocols, including G.711a, G.711u, G.729, G.722, G .726, iLBC, GSM and SIP, GSM cellular networks to quickly reduce telecommunication costs and maximize savings.

With the unique design of the bridge VoxStack, it supports hot-swap SIM cards for GSM gateways and modules. Users can simply add or remove hardware expansion modules or exchange. Each GSM gateway module performs an independent Asterisk system inside.

The design of the bridge with his card VoxStack LAN Switch allows the addition of new hardware. It supports sending and receiving SMS messages, sending group SMS and email to. GSM gateways are 100% compatible with Asterisk, Elastix, trixbox, and FreeSwitch 3CX SIP server.

Technical specifications

•  4 channels
•  1 SIM card per GSM channel
•  Quad band GSM / GPRS 850/900/1800/1900 MHz
•  Quick call
•  Changing PIN and IMEI
•   2 LAN ports
•   storage temperature: -40 ~ 125 ° C
•   Operating Temperature: 0 ~ 50 ° C
•   Operating Humidity: 10% ~ 90% non-condensing
•   1 male DB9 serial port to a debug console use, RS232
•   Power supply: external 12V DC / 4A
•   Max Power: 32 Watts
•   Dimensions: H x W x D: 4.5 cm X 15 cm x 19 cm


Characteristics

•  Hot-Swap (removal operation)
•  SMS, sending, receiving, sending group
•  SMS Transfer to email
•  management of the number of audit
•  SIP1.0 / 2.0, advanced SIP features
•  USSD Service
•  change IMEI
•  Compatible with Asterisk, Elastix, 3CX SIP server FreeSwitch

Frequency range

VS-GWM420L-E EMEA (Europe, Middle-East & Africa) /Korea/Thailand

LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

warranty : 2 years
